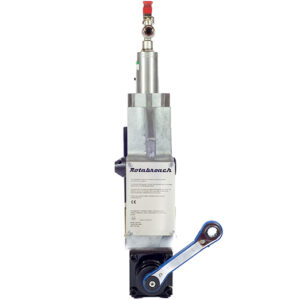

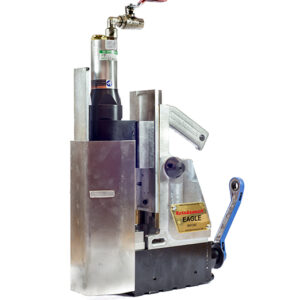

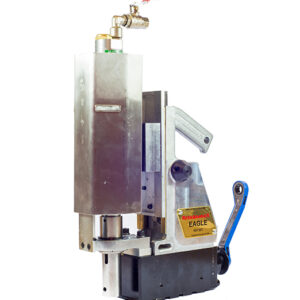

Rotabroach Eagle Pneumatic Drilling Machine

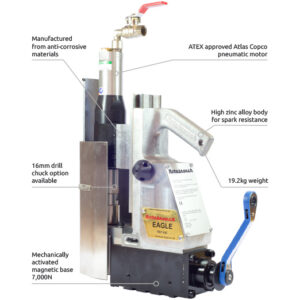

Atlas Copco Pneumatic motor for safety in hazardous areas.
Mechanically activated permanent magnetic base.
For safety, the machine is built with high zinc alloy body for spark resistance.
Stainless steel spindle and guard for anti-corrosion are manufactured for resistance in harsh environments.

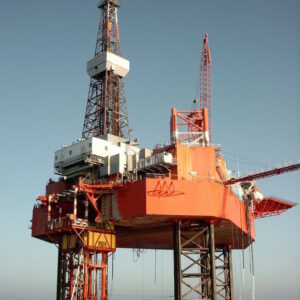

Designed for use in petrochemical plants, offshore oil platforms, and other hazardous environments.
Fully ATEX approved II 2G T4 II D110°C
Suitable for drilling up to 52mm diameter by 50mm depth.
Made in Sheffield, UK

Rotabroach Eagle Pneumatic Drilling Machine Specifications

Model Number	RD130C
Motor Specification	13 lts/sec – 28CFM @ 5.5 bar min – 6.9 bar max
No Load RPM	270 RPM
Max Hole Cutting Capacity	ø52 x 50mm deep
Drill Chuck Capacity	ø16mm
Overall Dimensions	Height: 560mm / Width: 160mm with Capstan / Length: 320mm with Guard
Machine Weight	19.2kg
Magnetic Adhesion	7,000N
Magnet Size	175mm x 75mm
Safety Features	Atlas Copco pneumatic motor for safety in hazardous areas / Fixed Guard
