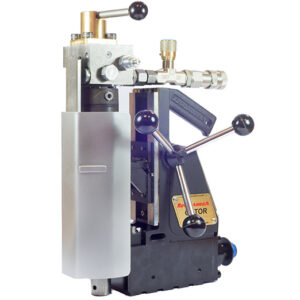

Rotabroach Gator Hydraulic Drilling Machine

Used in applications when only hydraulic supplies are most convenient or necessary.
Option available for underwater use.
Suitable for drilling up to 52mm diameter by 50mm depth.
Made in Sheffield, UK

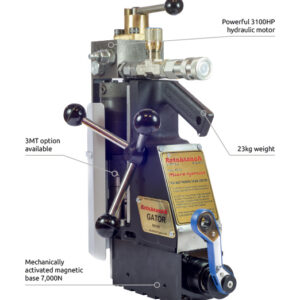

Rotabroach Gator Hydraulic Drilling Machine Specifications

Model Number	RD140
Motor Specification	140 bar (2050 psi)
No Load RPM	630 RPM
Max Hole Cutting Capacity	ø52 x 50mm deep
Drill Chuck Capacity	ø16mm
Overall Dimensions	Height: 520mm / Width: 160mm with Capstan / Length: 320mm with Guard
Machine Weight	23kg
Magnetic Adhesion	7,000N
Magnet Size	175mm x 75mm
Safety Features	Fixed Guard
