nagasaki hydraulic press

JAPAN TECHNOLOGY

We offer high-quality hydraulic presses here in Tackly Hardware & Machinery under the brand of NAGASAKI. These hydraulic presses are mainly used in workshop garage to press bearing, and anything else require this process.

NSP-15

The capacity of this hydraulic press is 15 Ton. Its maximum pressure can go up to 300kg/cm2.

The cylinder bore is 80mm and the dimension of the NSP-15 is 860 x 850 x 1640mm. its weights was 196kg.

NSP-35

The capacity of this hydraulic press is 35 Ton. Its maximum pressure can go up to 300kg/cm2.

The cylinder bore is 125mm and the dimension of the NSP-35 is 1080 x 850 x 1820mm. its weights was 320kg.

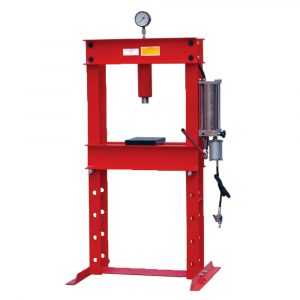

TOYO HYDRAULIC PRESS

THAILAND TECHNOLOGY

We present to you TOYO hydraulic presses and electric-hydraulic presses. We have a few varieties of capacity for you to choose from the cope with what you’re looking for.

Start with the customer – find out what they want and give it to them.

10T 30T 40T 60T 100T

Professional TOYO hydraulic presses can help you with your work efficiently. The capacity range from 10 ton to 100 ton. We ensure customer satisfaction in all our products.

  Overall
Height
Overall
Width
Overall
Width of
Side
Frame
Hole
Piston
Rod Dia
Ram
Stroke
Net
Weight
(kg)
10T 1180 650 430 25 52 135 75
30T 1730 1000 685 32 70 150 250
40T 1810 1255 770 32 75 150 420
60T 1930 1295 915 40 89 185 665
100T 2070 1745 1150 52 98 235 1575

*all measurements are in mm unless stated.

  Overall
Height
Overall
Width
Overall
Width of
Side
10T 1180 650 430
30T 1730 1000 685
40T 1810 1255 770
60T 1930 1295 915
100T 2070 1745 1150
  Frame
Hole
Piston
Rod Dia
Ram
Stroke
Net
Weight
(kg)
10T 25 52 135 75
30T 32 70 150 250
40T 32 75 150 420
60T 40 89 185 665
100T 52 98 235 1575

*all measurements are in mm unless stated.

150T 200T (Electric Type)

Professional TOYO hydraulic presses can help you with your work efficiently. We guarantee satisfaction and most importantly safety in these heavy duty machines.

  Overall
Height
Overall
Width
Overall
Width of
Side
Frame
Hole
Piston
Rod Dia
Ram
Stroke
Net
Weight
(kg)
150T 2270 2110 1345 52 116 235 2000
200T 1580 770 430 27 50 140 150

*all measurements are in mm unless stated.

  Overall
Height
Overall
Width
Overall
Width of
Side
150T 2270 2110 1345
200T 1580 770 430
  Frame
Hole
Piston
Rod Dia
Ram
Stroke
Net
Weight
(kg)
150T 52 116 235 2000
200T 27 50 140 150

*all measurements are in mm unless stated.

150T 200T (Electric Type)

Professional TOYO hydraulic presses can help you with your work efficiently. We guarantee satisfaction and most importantly safety in these heavy duty machines.

  Overall
Height
Overall
Width
Overall
Width of
Side
Frame
Hole
Piston
Rod Dia
Ram
Stroke
Net
Weight
(kg)
150T 2270 2110 1345 52 116 235 2000
200T 1580 770 430 27 50 140 150

*all measurements are in mm unless stated.

  Overall
Height
Overall
Width
Overall
Width of
Side
150T 2270 2110 1345
200T 1580 770 430
  Frame
Hole
Piston
Rod Dia
Ram
Stroke
Net
Weight
(kg)
150T 52 116 235 2000
200T 27 50 140 150

*all measurements are in mm unless stated.
