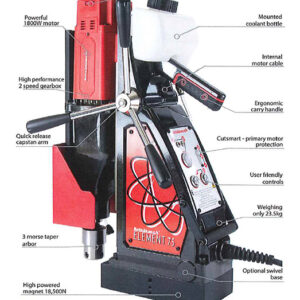

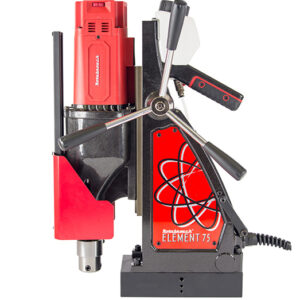

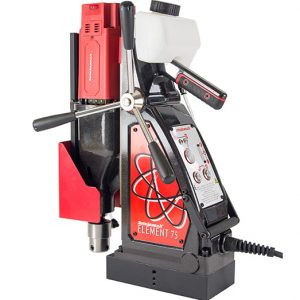

Rotabroach Magnetic Drill Element-75

For heavy-duty operations the ‘Element 75’ is a must for drilling larger holes.
Compact, durable, and more portable than other larger machines.
Suitable for drilling up to 75mm diameter by 75mm depth.
The ‘Element 75’ offers forward and reverse functionality.
The ‘Element 75’ can be supplied as a swivel base or a non-swivel option.
The Element range uses a unique dual motor protection system prolonging the machine’s life and preventing unwanted wear.
Made in Sheffield, UK.

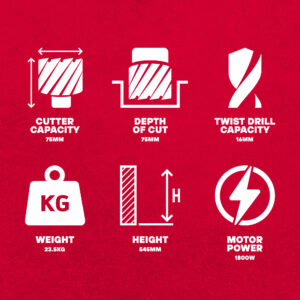

Rotabroach Magnetic Drill Element-75 Specifications

Model Number		Element 75/3
Motor Specification		230V 1800W
No Load RPM		Low Gear: 70 -180 RPM High Gear: 200-500 RPM
Max Hole Cutting Capacity		75 x 75mm Deep – 26mm with MT Drill
Overall Dimension (mm)		Height: 545mm / Width: 230mm with Capstan / Length: 460mm with Guard
Machine Weight		23.5kg
Magnetic Adhesion		18,500N
Safety Features		Cutsmart™ Technology / Fixed Guard / Magnetic Detection / Mechanical Clutch
