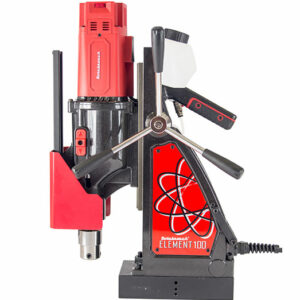

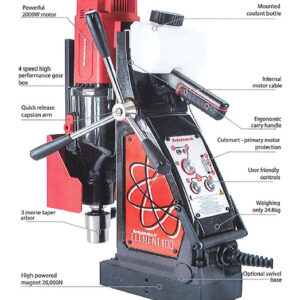

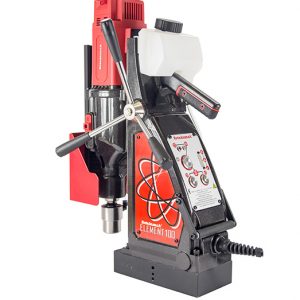

Rotabroach Magnetic Drill Element-100

The Rotabroach’s largest machine comes with large diameter drilling and cutting depths and is suitable for drilling up to 100mm diameter by 100mm depth.
The ‘Element 100’ offers forward and reverse functionality for tapping and can be supplied as a swivel base or a non-swivel base.
The Element range uses a unique dual motor protection system prolonging the machine’s life and preventing unwanted wear.
Made in Sheffield, UK.

Rotabroach Magnetic Drill Element-100 Specifications

Model Number		Element 100/3
Motor Specification		230V 1800W
No Load RPM		Gear 1: 45-129 RPM Gear 2: 70-208 RPM Gear 3: 150-434 RPM Gear 4: 240-700 RPM
Max Hole Cutting Capacity		100 x 100mm Deep – 31.75 with MT Drill
Overall Dimension (mm)		Height: 560mm / Width: 230mm with Capstan / Length: 460mm with Guard
Machine Weight		24.8kg
Magnetic Adhesion		20,000N
Safety Features		Cutsmart™ Technology / Fixed Guard / Magnetic Detection / Mechanical Clutch
